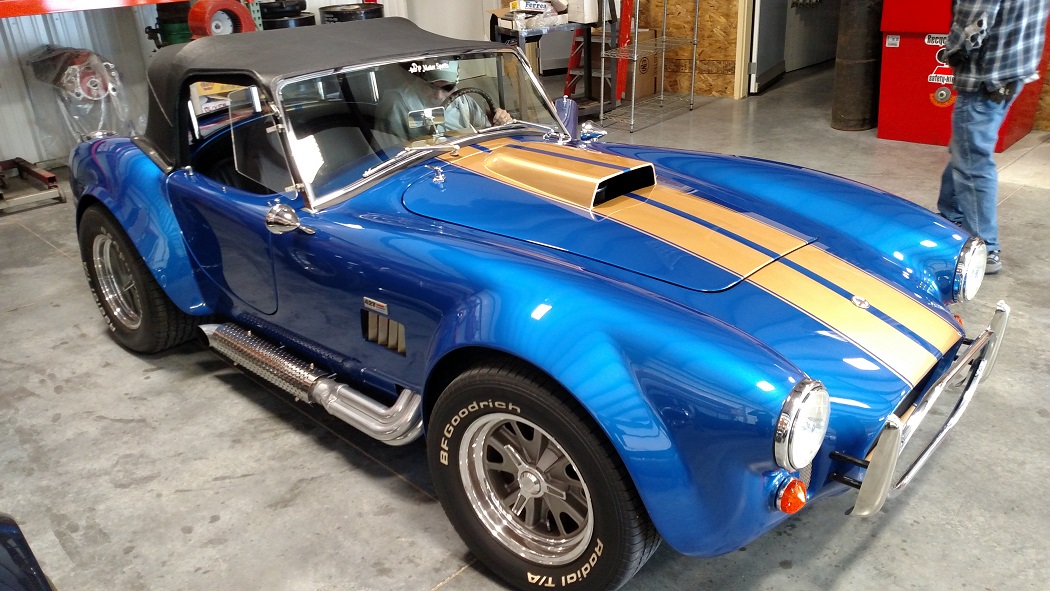

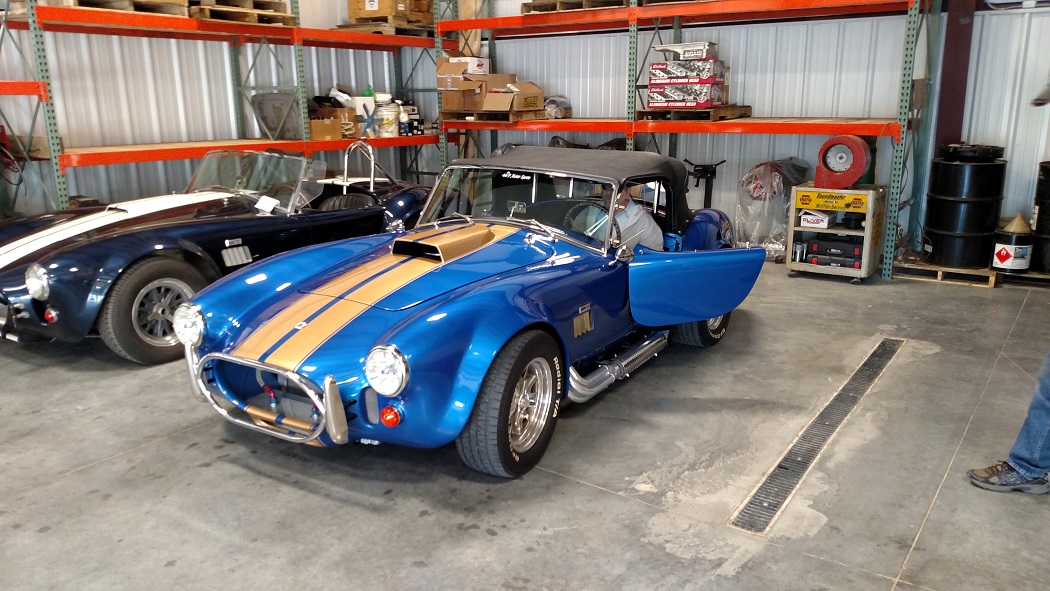

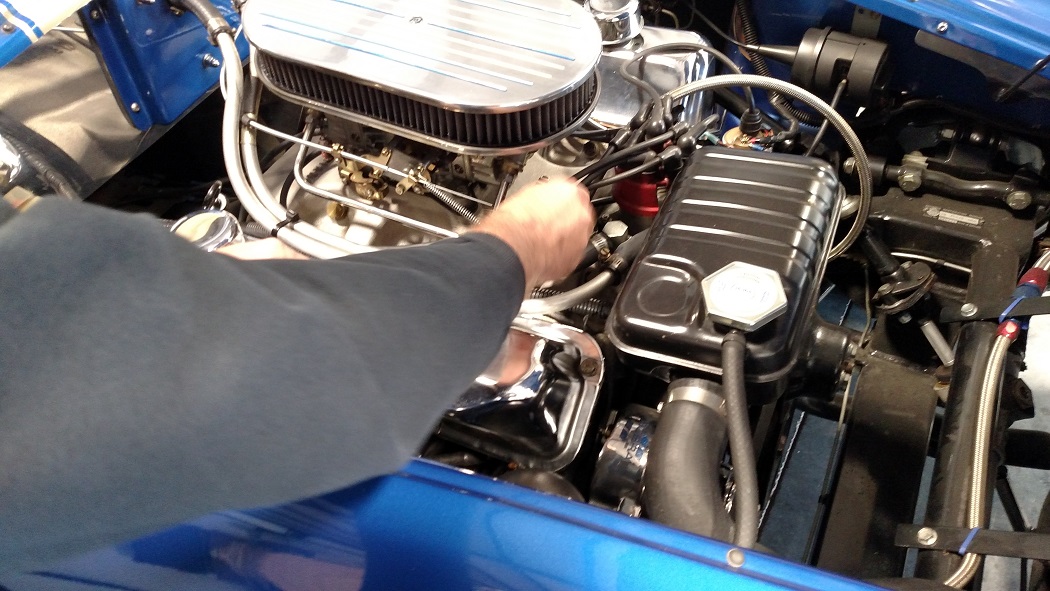

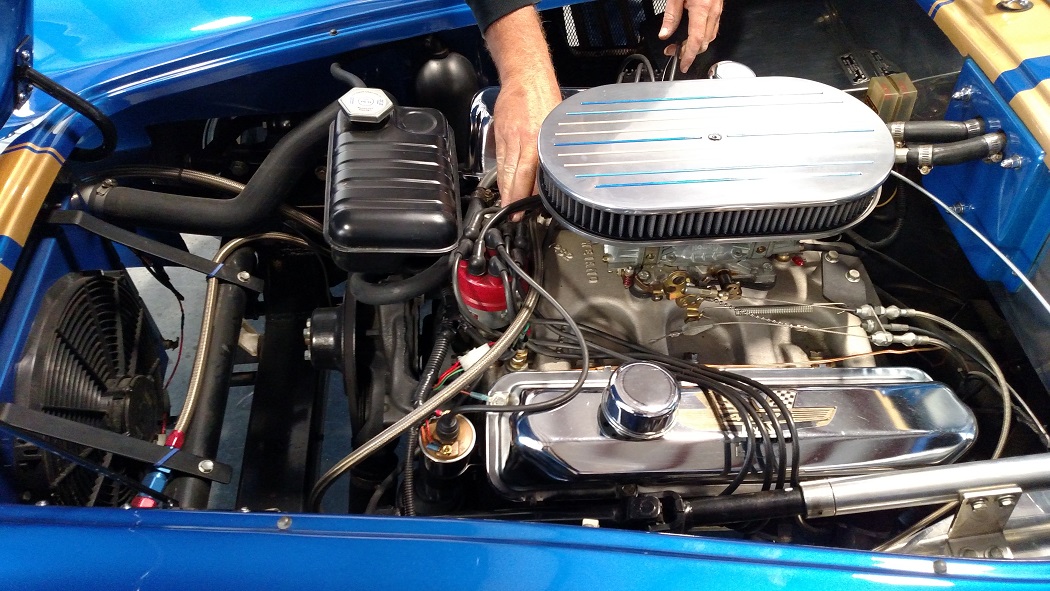

Steve 427 Cobra Project 11/23/15. Shipped back Sept 2016
-
- Steve Images not showing any Side Oiler Galleys – Block is a Top Oiler.
-
- What a Side Oiler should look like with the Correct Front and three side galleys. Our Block Images shown as example
-
- Felpro 1247 Intake gasket pieces out exhaust pipe. Significant Intake Leak.
12/3/15 OK to start engine removal
-
- 1247 Felpro Gasket sucked in – leaking. Intake bolts were at about 10# torque.
-
- Other engine compartment and parts disassembled components. 12/3/15
-
- Engine Compartment after removal-12-4-15
-
- Beginning disassembly 12-4-15
-
- Misc Images after disassembly.
-
- Steve’s Crank had Rear Seal leaks due to no Ford OEM Knurl on the seal area.
-
- This what the knurl should look ike to help the One Piece seal work.
Will use our 2U correctly Knurled Rear Seal Crankshaft. Return your old one. 12/9/15
-
- several deck cracks when magnafluxed. Are OK if we use new Head Studs to assemble not Bolts. 12/9/15
-
- Rod Bolts 12/14/15
-
- Cam Bearings
-
- Felpro Head and Remainder Gaskets
-
- CC Steve’s Heads
-
- Parking
-
- Pro-Gear Timing
-
- Head Studs 12/16/15
-
- Head Studs 12/16/15
-
- Intake Gaskets

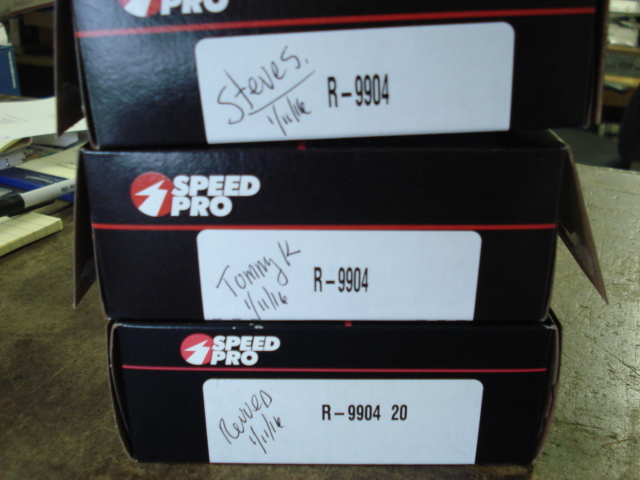

Piston Rings 1/12/16
-
- Rebuilding Steve’s Stock Ford Rods 1/22/16. Replaced #5 as it would not clean up on the parting line.
email from Nancy at Arias that Steve’s pistons shipped today 1/25/16
-
- Balancing Rods 1/26/16
-
- Cobra nice and warm before the 2/2/16 Blizzard
Arias Pistons arrived 1/29/16 Pictures to follow
-
- Arias Pistons arrive
-
- Balance work 6/20-21,2016. Start final Block work
Comp Camshaft & Lifters Received Ser# L1379-16 (Block is early Solid Lifter 427)
33-000-11 Mechanical Solid Roller Cam on a 112 218/224 .521/.521
928-16, 1732-16, 612-16, 515-16 & 4776
-
- Carb problems
-
- New Carb arrives
-
- Crank in Block, Timing on
-
- Head Works and instal seal in Timing Cover
-
- Finishing up Heads and Working on assembly 7/26/16
-
- Pushrods arrive
-
- Milling Intake sides to fit Heads. Removed .020″
-
- Instal Brass Gear in Distributor for Roller Camshaft
Ordered new Aviaid Oil Pan and Pickup 8/4/16 AM
-
- Oil Oil Pickup – to be replaced with appropriate Aviaid Oil Pan, Tray and Pickup.
Build-Sheet-for-Steve-12-09-15-427
Build-Sheet-for-Steve-01-25-16-427
