Shelby Engine #7 472 CSX534 Block
Will have new Heads, New Intake, New T&D Rockers and be 9.00:1 Compression with New Arias Pistons.
Rebuild Eagle 6.635 Rods and Have Knurl put on used Scat Crankshaft. Port new Intake to new Heads.

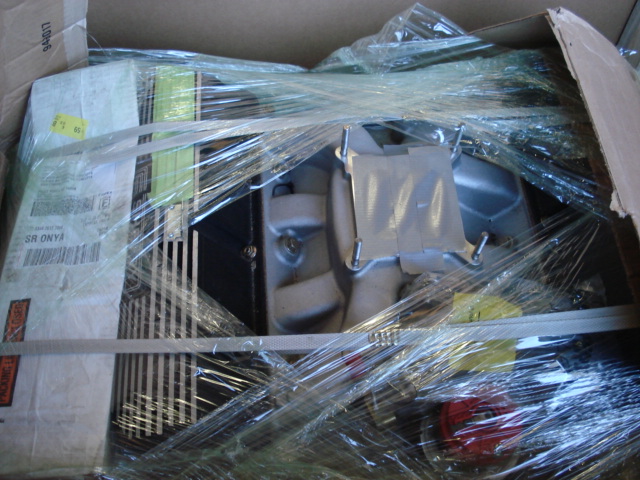

Received 11/15/15 for review and rebuild
-
- Disassemble CSX534 Engine
-
- CSX534 Block
-
- Old Pistons (Not Shelby) on Scat Rods
-
- Scat Early Crank No Knurl 4.125 Stroke
-
- Clutch, Disc and Flywheel, Oil Pan, Pushrods and damaged Pushrods
-
- Ends Heated to Blue
-
- Damaged Thrust Plate, Timing Gear wear.
-
- Misc. Parts
-
- Old Heads
-
- New Heads T&D Rockers not pictured
-
- New Intake
-
- Measuring and checking block over 11/25/15
-
- Boring Block 4.270″ 12/1/15
-
- T&D Rockers – Full Shaft Mount Style
-
- Crank Knurl Completed
-
- Before Knurl added

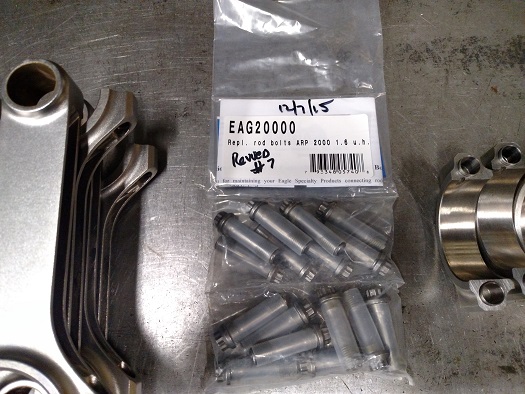

New Rod Bolts arrive 12/7/15
-
- Felpro Remainder Set
-
- Cam Bearings
-
- REVVED Cometic Gaskets
Block will bore 4.270 OK to order Pistons 11/30/15 -Faxed to Arias 12/3/15 9.00:1 Comp
Cometic Head Gaskets C5840-040 Intake C5137-060
-
- Arias Pistons Arrive
-
- Compression 9.0:1
-
- Revved Block at Assembly 2/2/16 in the Blizzard of 2016
-

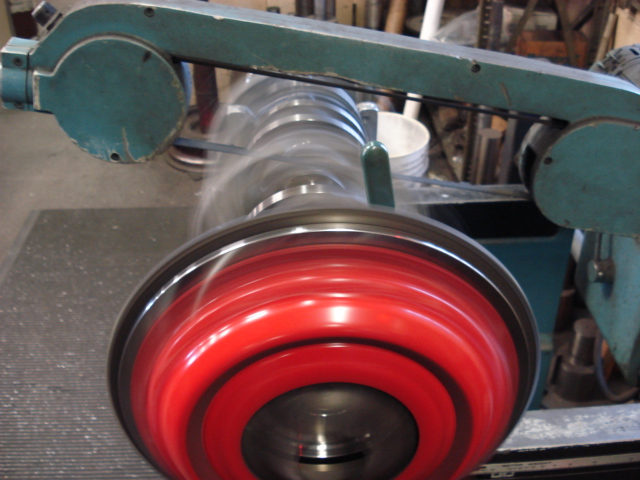

- Balancing and fitting Damper to Crankshaft 2/9-16

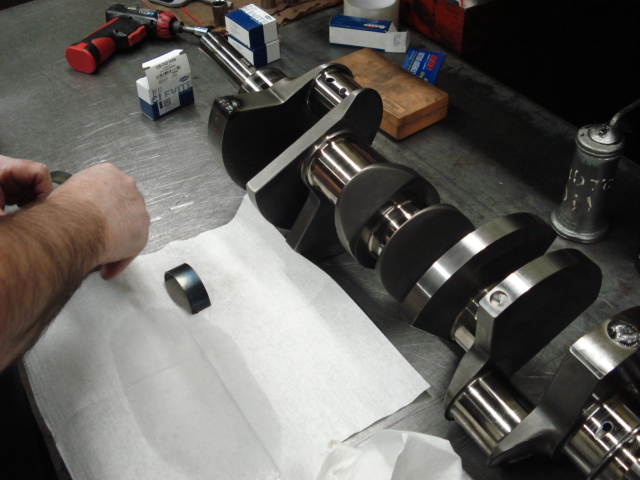

Checking Bearing Clearances

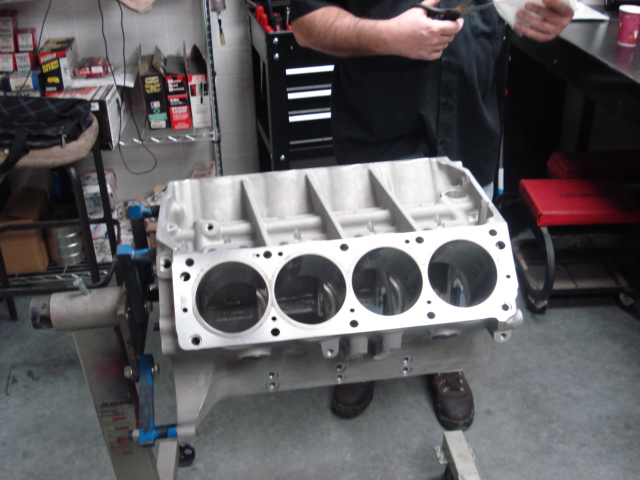

Cleaning Block

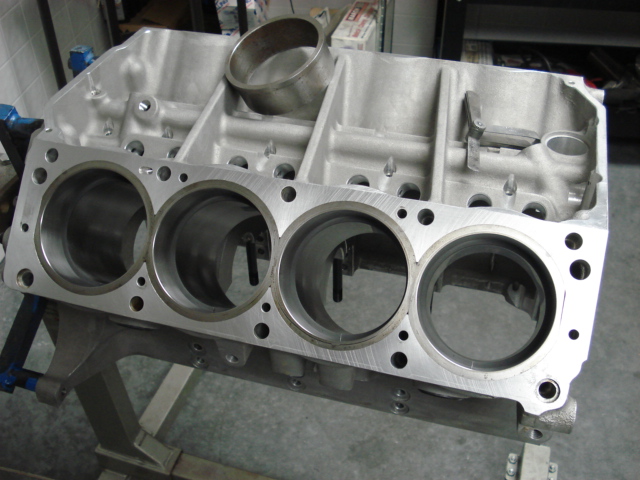

File Fitting Ring End Gaps
-
- Bearings Clearances – Cam & Lifters arrive
-
- Assembly 3/11
-
- Assembly 3/12/16
-
- Assembly 3/19/16

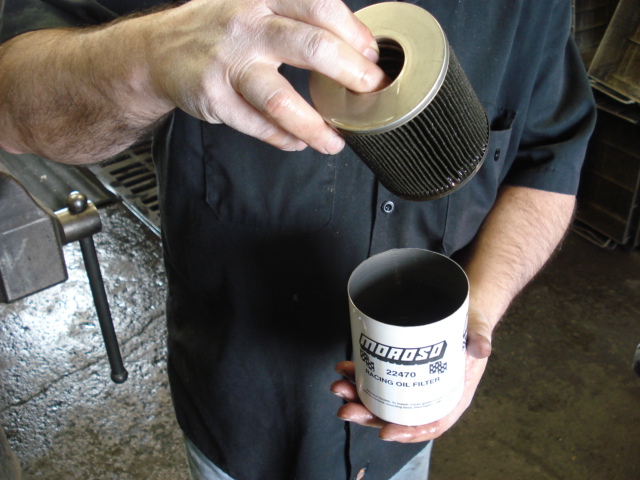

Oil Filter Looks Great 3/22/16
Boxing for shipment 3/23/16
